23度角±30分 | 正+0.5 0 | 正+0.2 0 | 正+0.2 0 | 单重 | 正+0.15 0 | 0 负- 0.76 | ±0.5 | ±0.5 | |

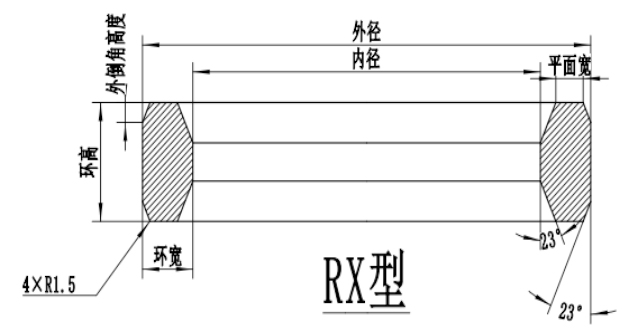

环号 | 外径 | 内径 | 环宽 | 环高 | KG/只 | 平面宽度 | 外倒角高度 | 内圆角半径R1 | 孔径 |
RX20 | 76.2 | 58.72 | 8.74 | 19.05 | 0.28 | 4.62 | 3.18 | 1.50 | / |
RX23 | 93.27 | 69.45 | 11.91 | 25.4 | 0.62 | 6.45 | 4.24 | ||
RX24 | 105.97 | 82.15 | 11.91 | 25.4 | 0.71 | 6.45 | 4.24 | ||
RX25 | 109.55 | 92.07 | 8.74 | 19.05 | 0.42 | 4.62 | 3.18 | ||
RX26 | 111.91 | 88.09 | 11.91 | 25.4 | 0.76 | 6.45 | 4.24 | ||
RX27 | 118.26 | 94.44 | 11.91 | 25.4 | 0.80 | 6.45 | 4.24 | ||
RX31 | 134.54 | 110.72 | 11.91 | 25.4 | 0.93 | 6.45 | 4.24 | ||
RX35 | 147.24 | 123.42 | 11.91 | 25.4 | 1.02 | 6.45 | 4.24 | ||
RX37 | 159.94 | 136.12 | 11.91 | 25.4 | 1.12 | 6.45 | 4.24 | ||
RX39 | 172.64 | 148.82 | 11.91 | 25.4 | 1.22 | 6.45 | 4.24 | ||
RX41 | 191.69 | 167.87 | 11.91 | 25.4 | 1.36 | 6.45 | 4.24 | ||
RX44 | 204.39 | 180.57 | 11.91 | 25.4 | 1.46 | 6.45 | 4.24 | ||
RX45 | 221.84 | 198.02 | 11.91 | 25.4 | 1.59 | 6.45 | 4.24 | ||
RX46 | 222.25 | 195.27 | 13.49 | 28.58 | 2.01 | 6.68 | 4.78 | ||
RX47 | 245.26 | 205.58 | 19.84 | 41.28 | 4.62 | 10.34 | 6.88 | 2.30 | |
RX49 | 280.59 | 256.77 | 11.91 | 25.4 | 2.03 | 6.45 | 4.24 | 1.50 | |
RX50 | 283.36 | 250.04 | 16.66 | 31.75 | 3.53 | 8.51 | 5.28 | ||
RX53 | 334.57 | 310.75 | 11.91 | 25.4 | 2.44 | 6.45 | 4.24 | ||
RX54 | 337.34 | 304.02 | 16.66 | 31.75 | 4.24 | 8.51 | 5.28 | ||
RX57 | 391.72 | 367.9 | 11.91 | 25.4 | 2.87 | 6.45 | 4.24 | ||
RX63 | 441.73 | 387.73 | 27 | 50.8 | 14.22 | 14.78 | 8.46 | 2.30 | |
RX65 | 480.62 | 456.8 | 11.91 | 25.4 | 3.54 | 6.45 | 4.24 | 1.50 | |
RX66 | 483.39 | 450.07 | 16.66 | 31.75 | 6.17 | 8.51 | 5.28 | ||
RX69 | 544.12 | 520.3 | 11.91 | 25.4 | 4.03 | 6.45 | 4.24 | ||
RX70 | 550.06 | 510.38 | 19.84 | 41.28 | 10.86 | 10.34 | 6.88 | 2.30 | |
RX73 | 596.11 | 569.13 | 13.49 | 31.75 | 6.24 | 6.68 | 5.28 | 1.50 | |
RX74 | 600.86 | 561.18 | 19.84 | 41.28 | 11.90 | 10.34 | 6.88 | 2.30 | |
RX82 | 67.87 | 44.05 | 11.91 | 25.4 | 0.42 | 6.45 | 4.24 | 1.50 | 1.52 |
RX84 | 74.22 | 50.4 | 11.91 | 25.4 | 0.47 | 6.45 | 5.24 | ||
RX85 | 90.09 | 63.11 | 13.49 | 25.4 | 0.66 | 6.68 | 6.24 | ||
RX86 | 103.58 | 73.4 | 15.09 | 28.58 | 0.95 | 8.51 | 4.78 | 2.29 | |
RX87 | 113.11 | 82.93 | 15.09 | 28.58 | 1.06 | 8.51 | 4.78 | ||
RX88 | 139.29 | 104.37 | 17.46 | 31.75 | 1.69 | 10.34 | 5.28 | 3.05 | |
RX89 | 129.77 | 93.25 | 18.26 | 31.75 | 1.62 | 10.34 | 5.28 | ||
RX90 | 174.63 | 134.95 | 19.84 | 44.45 | 3.41 | 12.17 | 7.42 | 2.30 | |
RX91 | 286.94 | 226.58 | 30.18 | 45.24 | 8.76 | 19.81 | 7.54 | ||
RX99 | 245.67 | 221.85 | 11.91 | 25.4 | 1.77 | 6.45 | 4.24 | 1.50 | |
RX201 | 51.46 | 39.98 | 5.74 | 11.3 | 0.07 | 3.20 | 1.45(0-0.38) | 0.5(+0.50) | |
RX205 | 62.31 | 51.19 | 5.56 | 11.1 | 0.09 | 3.05 | 1.83(0-0.38) | ||
RX210 | 97.64 | 78.58 | 9.53 | 19.05 | 0.40 | 5.41 | 3.18(0-0.38) | 0.8(+0.50) | |
RX215 | 140.89 | 117.07 | 11.91 | 25.4 | 0.98 | 5.33 | 4.24(0-0.38) | 1.5(+0.50) |
